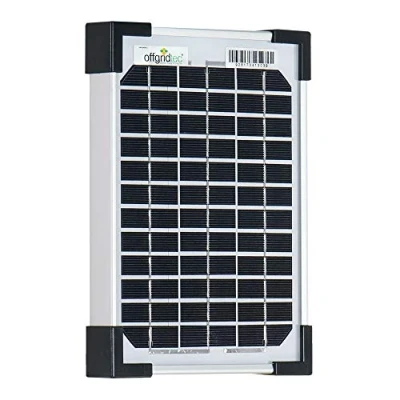

Offgridtec Solar Panel 5 Watt 12 V Monocrystalline 002960

High-Quality Monocrystalline Solar Module - best suited for charging 12V batteries - Only A grade cells are used, thus only cells that have scored above average in the performance tests. The most important technical specifications at a glance: Power (Pmax): 5W - Voltage (Vmp): 17.8V - Max. current (lmp): 0.28A - open-circuit voltage (Voc): 22.3V - short-circuit current (Isc): 0.30 A - Maximum system voltage: 600VDC - Ambient temp. : -40°C to +85°C - Dimensions (W x L x H): 250 mm x 180 mm x 25 mm. Weight: 0.0kg - Bypass diodes: 1 x IOSQO50 bypass diode. Protection class connection box: IP67 - Maximum cable cross section: 6 mm². Permanent monitoring of the module quality and performance data through tests under real and laboratory conditions - Every Offgridtec Solar Power Panel is subjected to a flash test before delivery – for technical queries, the Offgridtec GmbH customer system is always at your service. The module is delivered without connection cable - a matching connection cable from the manufacturer to connect to a charge controller can be found under the Amazon ASIN B0784BVPS2. The cell efficiency of the Offgridtec-Mono series is 20.4% and is thus higher than most modules with similar technical specifications – this is particularly noticeable by a positive power tolerance and measurably higher yield under real conditions – as a standard, Offgridtec solar panels are equipped with bypass diodes (number of units varies depending on model), which reduces the power drop in the event of shading.
