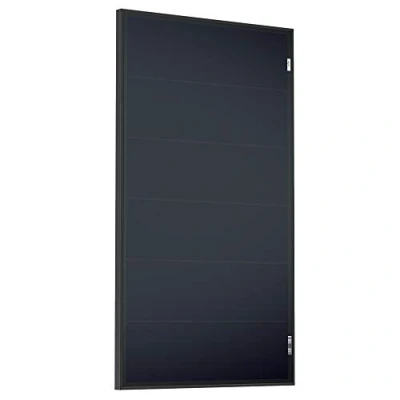

Offgridtec 100 W 12 V overlapping solar panel, shingle technology

Monocrystalline high efficiency solar module from Offgridtec with innovative connection technology (shingles) with extremely high performance density. Thanks to the overlap (overlapping design), inactive surfaces on the cells are minimised, cell metallisation is significantly reduced and shading is completely avoided thanks to cell connectors. Technical features of the Offgridtec OL-M 100W (MPN 3-01-011070): Module voltage (Vmp): 18.7 V) - Open-circuit voltage: 22.1 V - Maximum current (Imp): 5.35A - Short circuit current: 5.67 A. Temperature coefficient performance: -0.43 %/C. Temperature coefficient voltage: -0.34 %/C. Temperature coefficient current: +0.05 %/C. Dimensions (L x W x H): 560 mm x 988 mm x 30 mm. Length and connection of the pre-installed cable: each 55 cm with MC4 connectors. Weight: 6.09 kg. Number of cells: 108. Cell arrangement: 6 x 18. Cell type: Mono-crystalline. Efficiency: 21.24%. Power tolerance: Plus/Minus 3%. Premium quality product from Offgridtec - competent help included if required.
