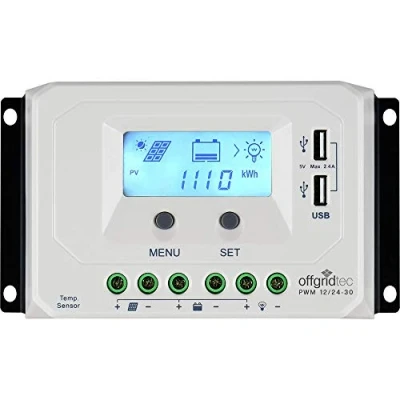

Offgridtec® PWM Pro Charge Controller 12V/24V 30A USB

PWM-12/24-30 performance features: max. Charging current 30 A. Maximum PV connection power 390 W (12 V) or 780 W (24 V). Max. PV open circuit voltage 22 V (12 V) / 50 V (24 V) --- max. Load current: 30 A. Max. Cable cross section: 16 mm² 3-stage PWM charge control for gentle and efficient charging of your batteries; 3 battery types adjustable: AGM, GEL, and liquid lead acid --- intuitive operation via 2 buttons directly on the device --- Device dimensions (L x W x H): 181 x 100 x 59.8 mm Large LCD display with numerous display options, including kWh meter, 2 USB ports with a maximum output power of 2.4 A (total), load output with numerous configuration options, e.g. for light control Integrated device and battery protection: PV short circuit protection - Automatic interruption of the connection in case of short circuit on the solar side --- PV reverse polarity protection - Interrupts the connection automatically in case of incorrectly connected polarity on the solar side --- Overload protection - If the maximum permissible load current on the controller is exceeded by 5%, the controller automatically disconnects the existing load Temperature-compensated battery charging (optional temperature sensor required, not included) --- Box contents: charge controller PWM-12/24-30A / user manual in German/English
