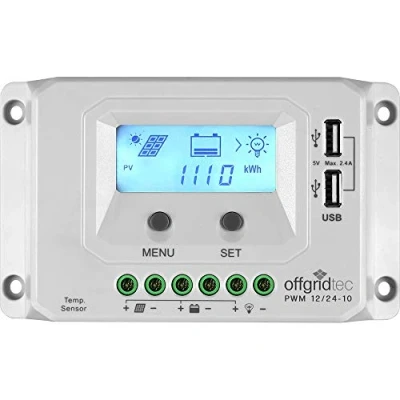

Offgridtec® PWM Pro Charge Controller 12V/24V 10A USB

Performance features of the PWM-12/24-10: max. Charging current 10 A – Maximum PV connection power 130 W (12 V) or 260 W (24 V). Max. PV open-circuit voltage 22 V (12 V) / 50 V (24 V). Max. load current: 10 A. Max. cable cross section: 4 mm². Box contents: Charge controller / user manual in German / English 3-stage PWM charge control for gentle and efficient charging of your batteries(s). 3 battery types adjustable: AGM, gel, and liquid lead acid --- intuitive operation via 2 buttons directly on the device --- Device dimensions (L x W x H): 142 x 85 x 41.5 mm Large LCD display with numerous display options, including kWh meter, 2 USB ports with a maximum output power of 2.4 A (total), load output with numerous configuration options, e.g. for light control Integrated device and battery protection: PV short circuit protection, PV reverse polarity protection, overload protection, protection against overheating, protection against short circuit at the load output Temperature compensated battery charge (optional temperature sensor required, not included). Box contents: Charge controller PWM-12/24-10A / user manual in German / English
