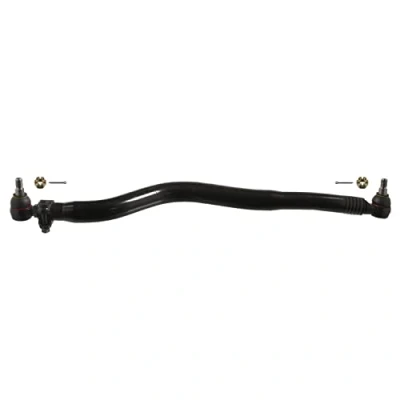

Centre Rod Assembly FEBI BILSTEIN 39761

Febi Bilstein Centre Rod Assembly, model 39761, is a single-piece steering component designed for front-axle installation in left-hand drive Volvo Trucks. It bears the brand name Febi Bilstein and is described as Made in Germany. Key specifications include a length of 1028 mm, a push-rod bar type, and a tube diameter of Ø60 mm. The assembly features an internal thread of M30 x 1.5 RHT and an external thread of M20 x 1.5, with a cone size of 28.6 mm. An OE reference listed for comparison is Volvo truck 21308022.

Technical specifications

• Length: 1028 mm
• Internal thread: M30 x 1.5 RHT
• External thread: M20 x 1.5
• Tube diameter: Ø60 mm
• Cone size: 28.6 mm
• Installation: front axle
