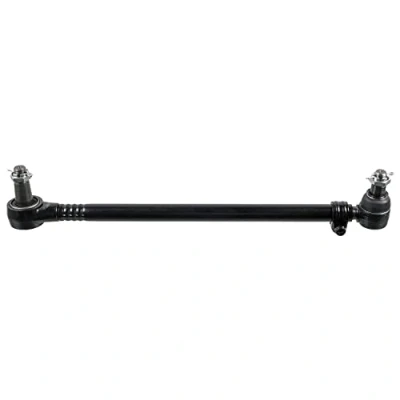

Centre Rod Assembly FEBI BILSTEIN 22647

This is the Centre Rod Assembly 22647 from Febi Bilstein, an engineered component designed for Daimler Buses (ex EvoBus) and Mercedes-Benz Trucks. The part measures 585 mm in length and features a tube diameter of 30 mm with an internal thread of M30 x 1.5 and a male thread of M20 x 1.5. It uses a push rod design and is intended for installation on the front axle. The assembly includes two cone sizes, 26 mm and 28.5 mm, and has a weight listed as 3.580 kg. OE compatibility numbers are provided for reference: EVOBUS 613 333 01 05 and Mercedes-Benz Truck 613 333 01 05.

Features

• Length: 585 mm
• Tube diameter: Ø30 mm
• Internal thread: M30 x 1.5
• Male thread: M20 x 1.5
• Cone sizes: 26 mm and 28.5 mm
• Rod type: push rod; installation: front axle

Technical details

Brand: Febi Bilstein. Suitable for Daimler Buses (ex EvoBus) and Mercedes-Benz Trucks. Weight: 3.580 kg. Center Rod Assembly 22647. OE numbers for comparison: EVOBUS 613 333 01 05; Mercedes-Benz Truck 613 333 01 05.
