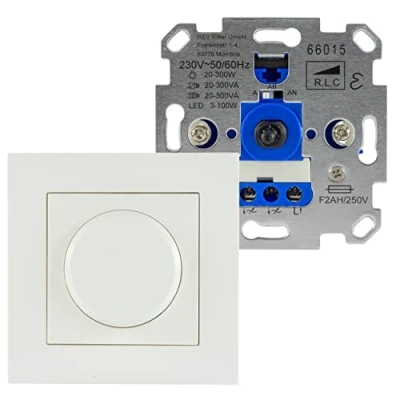

REV 0399730090 TECHNIK, Dimmer Universal Complete Device Brightness Controller, White

The dimmer is suitable for switching and dimming LED lamps, incandescent lamps, energy-saving lamps, high-voltage halogen lamps and low-voltage halogen lamps with electric or conventional transformers The dimmer has automatic load detection, works in phase control or section operation depending on the connected light and offers flexible light adjustment for dimmable lights Brand compatible with the included adaptor: Gira: surface switch, standard 500, Merten: system M, Jung: A500, AS500, CD500 and Busch Jaeger Alpha Nea, Reflex SI, Solo, Duro 2000, Balance SI Frame and cover of the Matrix switch series are included. The universal dimmer is suitable for flush-mounted installation in a standard switch box. It has a fine fuse: F2AH/250V Technical data: 50/60Hz 230V~, LED 3-100W, bulb load 20-300W, transformer load 20-300VA. IP20 Dimensions (L x W x H): 125 x 89 x 60 mm, weight: 81 g, colour: white By turning the rotary / push button, the brightness of the connected light is infinitely adjusted. By pressing the twist/push button, the connected light is switched on/off
