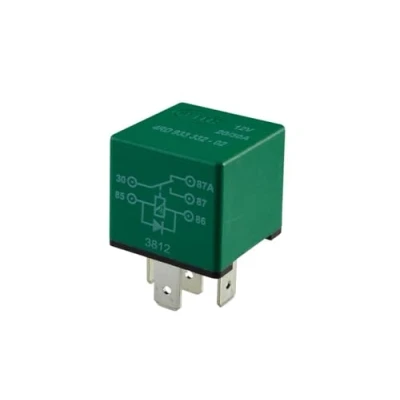

Relay, main current HELLA 4RD 933 332 021

Mini relay - switch relay 12 V, 5 poles, with parallel diode, without bracket Rated switching current: min, 6A, max, 30A (for 80°C ambient temperature) Number of speed changes: min, 60,000 Temperature fields from: -40°C - Temperature range up to: 125°C Rated current: 40A - Ohmic load: 40A - Inductive load: 15A - Capacity load: 5A Form version ID: B1 Ohmic load [A]: 30, 20 Inductive load [A]: 20, 6 Capacitive load [A]: 10, 20 Temperature field [°C]: 80
