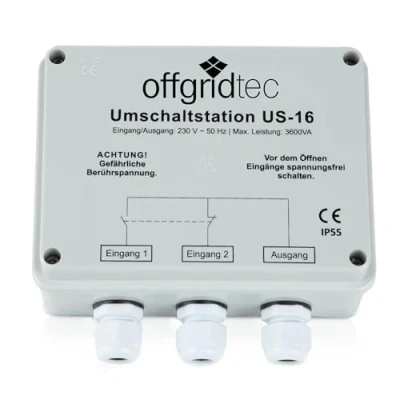

Offgridtec® Switching station for mains priority switch UPS operation US 16 230V 16A 3600W

Switches reliably between 230V AC grid and inverter Automatically detects a second 230V AC voltage Priority circuit for inverter or 230V AC grid - switching capacity maximum 12A at 230V Examples of use: solar island systems, caravans, mobile homes, boats, motor vehicles The built-in relays ensure precise switching and your inverter is safely protected from external voltage Automatic network switching / priority switching 230 volts max. 3600 W input A: lower priority input B: higher priority technical data: input voltage: 230VAC 50Hz input current (max.): 16A power (max.): 3600VA switching time: 1-2s --- Fuse: T 16A / 250V Protection: overload, short circuit, feedback --- Housing: plastic --- Degree of protection: IP55 --- Connection: screw terminals --- Dimensions: 160 x 145 x 77mm - - Weight: 450g Scope of delivery: switchover station, earthing terminal, operating instructions DE, GB, FR, NL
