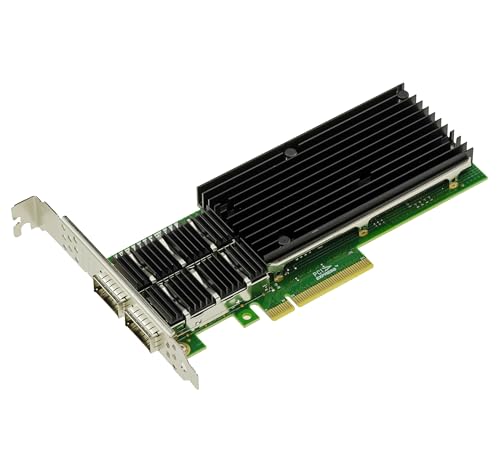

KALEA INFORMATIQUE PCIe 3.0 x8 40G QSFP+ Network LAN Card 2 Ports Intel X710 Chipset Supports Advanced Virtualization

Dual-port 40 Gb/s network card based on the Intel XL710 controller. Thanks to hardware acceleration, it reduces the load on the processor by supporting functions such as TCP/UDP/IP checksums and TCP segmentation. PCIe 3.0 x8 compatible and backward compatible with PCIe 2.x, it also benefits from Intel PROSet tools for simplified installation and management. Compatibility: Windows 7/8/8.1/10/11, Windows Server 2008 through 2025 and beyond, Linux Stable Kernel version 3.x/4.x and beyond, Linux CentOS/RHEL 6.5/7.x and beyond. Ubuntu 14.x/15.x/16.x and above, VMware ESX/ESXi 4.x/5.x/6.x and above. For PCIe Gen 2.0 or higher port, in x8 or x16. PCI Express v3.0 (8.0GT/s) x8 port. Intel XL710 chipset. 40 Gigabit transfer rate per port. 40GBASE-SR4/LR4, 40GbE QSFP+ AOC/DAC interfaces. Supported standards: IEEE 802.3ba 40 Gigabit Ethernet, IEEE 802.3x Full Duplex and flow control, IEEE 802.3BD, IEEE 802.1AS, IEEE 802.1Q VLAN, IEEE 802.3AD, IEEE 802.3az - Energy Efficient Ethernet (EEE), IEEE 802. Jumbo frame support up to 9.5Kb. Network virtualization VXLAN, NVGRE, Geneve, Network Service Headers (NSH), VEPA, VEB Supported functions: PXE, iSCSI, FCoE, DPDK, VMDq, RSS, PCI-SIG*SR-IOV LED indicators (40 Gbit/s): Yellow (link) and Blue (activity) CHIPSET Mellanox Connect X-3. Power consumption 5.6W.
