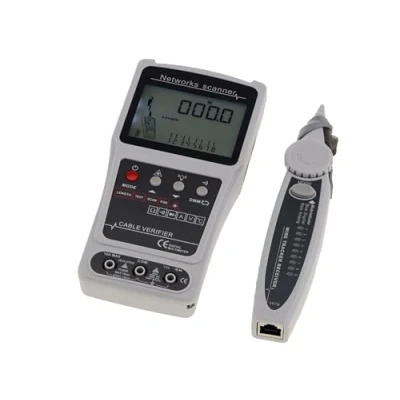

KALEA INFORMATIQUE Copper and fiber network tester with multimeter function: Mapping, VFL, Continuity, Length, POE, Voltage, Tracking, Torch, Voltage AC DC current, Temperature, Diodes...

A comprehensive tester with a professional finish. Combines the advantages of a multimeter with those of a network tester. Thanks to its VFL function, it can test both RJ45 copper and fiber networks. Multimeter. Measures AC and DC voltages and currents, resistances, diodes and continuity. Also measures temperatures. Tests continuity, mapping of RJ45 cables. For CAT5/6 cables, checks UTP/STP cordsets, indicates discontinuity wire by wire, maximum length tested 3km. Displays the wiring diagram on its screen. You'll be able to see whether the cord is straight or crossed, for example, or whether one of the 8 wires of an RJ45 cord is cut or has a bad contact. Several scan modes available. Provides continuous fis resistance. Tests the length of RJ45 cables. Measures the length of a cable from one end to the other if the cable is functional, or from one end to the breaking point if a fault has been detected. Choice of two modes: Digital and Analog. Complete power supply test (PoE Power Over Ethernet). For power supplies from 5V to 60V and 0 to 18W. Identifies which contact is carrying the power supply, and provides information on voltage and wattage. Possibility of testing batteries using the same tool and the adapter supplied.
