KALEA INFORMATIQUE 2 COM RS232 DB9 Mini PCI Express serial controller board with EXAR XR17V352 chipset

Name: KALEA INFORMATIQUE 2 COM RS232 DB9 Mini PCI Express serial controller board with EXAR XR17V352 chipset
Brand: KALEA-INFORMATIQUE
SKU: a03684c4a41a7ae84e8354dc0ee2a306
Price: 29.48 EUR
Availability: InStock

1/1

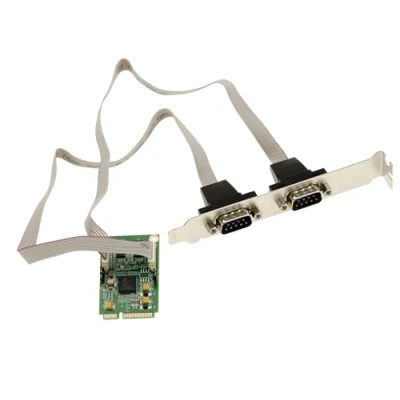

Image of KALEA INFORMATIQUE 2 COM RS232 DB9 Mini PCI Express serial controller board with EXAR XR17V352 chipset

Amazon

Prices from

29.48

Description

Amazon MiniPCIe 2 PORTS COM (RS232) CHIPSET EXAR XR17V352 card. Mounts on laptop's mini PCI EXPRESS port (52-pin) CHIPSET EXAR XR17V352 - Drivers for Windows 10/11, 8, Windows 7 / Vista / XP / Server 2003-2008-2012, Linux Kernel 2.6x or higher PCIe 2.0 Gen 1, MiniPCIe "full" or "Mini" compatible. Dual simplex transmission, 2.5 GBPs in each direction (25MBPs transfer rate). 16MPIO Sleep mode with sleep indicator 2 independent UART channels controlled by : 256-byte TX and RX FIFOs / Programmable TX / RX levels / TX/RX FIFO counters / Automatic RTS/CTS and DTR/DSR flow management / Automatic Xon/Xoff flow management. 15 KV serial port protection Board supplied with an extension bracket supporting 2 COM ports (male DB9 plugs). The DB9 ports can be removed from the bracket.

Compare webshops (1)

Sponsored links · Some shops pay us a fee

Sort by:

€ 29.48

Description (1)

MiniPCIe 2 PORTS COM (RS232) CHIPSET EXAR XR17V352 card. Mounts on laptop's mini PCI EXPRESS port (52-pin) CHIPSET EXAR XR17V352 - Drivers for Windows 10/11, 8, Windows 7 / Vista / XP / Server 2003-2008-2012, Linux Kernel 2.6x or higher PCIe 2.0 Gen 1, MiniPCIe "full" or "Mini" compatible. Dual simplex transmission, 2.5 GBPs in each direction (25MBPs transfer rate). 16MPIO Sleep mode with sleep indicator 2 independent UART channels controlled by : 256-byte TX and RX FIFOs / Programmable TX / RX levels / TX/RX FIFO counters / Automatic RTS/CTS and DTR/DSR flow management / Automatic Xon/Xoff flow management. 15 KV serial port protection Board supplied with an extension bracket supporting 2 COM ports (male DB9 plugs). The DB9 ports can be removed from the bracket.
