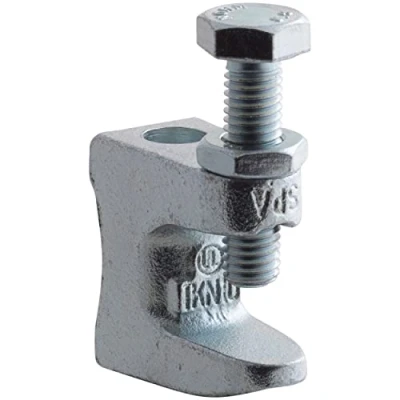

Fischer Bracket Clamp TKL L M Black 64055

VdS certified. The TKL design with its clamping screw allows for fixing to steel girders without the need for welding and drilling. The design of the clamping screw prevents it from slipping from the steel girder. VdS/FM/UL certificates guaranty independently tested safety. The solid TKL design guarantees a high load-bearing capacity. The TKL guarantees quick and easy installation. Material TKL: malleable cast iron EN-GJMB-350-10 acc. to DIN 1562 Material bolt: steel 8.8 acc. to ISO 4017 Material nut: steel acc. to ISO 4035, strength category 4 Material SS-TKL: steel DX51D (material no. 1.0226) acc. to EN 10214 Zinc plating: electro zinc-plated, min. 5 µm Clamp hangers allow for simple fixing by clamping direct to steel girders Safety plates SS-TKL are required for VdS equipment over Ø 65 mm
