F&F 8534 Electromagnetic Relay 230V 16A (160A/20ms) Light Control

Amazon
F&F 8534 Electromagnetic Relay 230V 16A (160A/20ms) Light Control

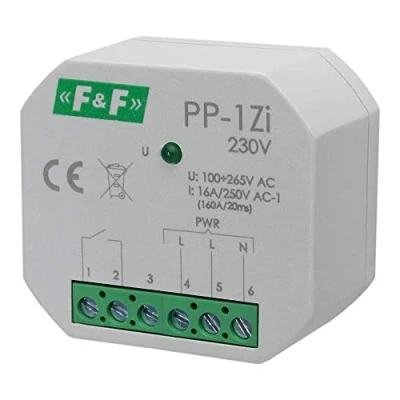

Image of F&F 8534 Electromagnetic Relay 230V 16A (160A/20ms) Light Control

Prices from

19.34

Featured

€ 19.34

To Shop

Description

Amazon Power supply: 100÷265V AC; Maximum load current: AC-1 16A (160A/20ms) Design element: relay; contact configuration: 1 x NO contact; contact disconnect Mechanical resistance: min. 5 x 106 cycles; connection: screw connections 2.5 mm²; tightening torque: 0.4 Nm Power consumption: < 0.6 W; power supply indicator: LED; operating temperature -25 ÷ 50 °C Dimensions: diameter 54 (48 x 43 mm), height: 25 mm; mounting: flush mounting Ø60; protection grade: IP20; material: plastic; weight: 44g

Compare webshops (1)

Shop

Price

€ 19.34

To Shop

Description (1)

Power supply: 100÷265V AC; Maximum load current: AC-1 16A (160A/20ms) Design element: relay; contact configuration: 1 x NO contact; contact disconnect Mechanical resistance: min. 5 x 106 cycles; connection: screw connections 2.5 mm²; tightening torque: 0.4 Nm Power consumption: < 0.6 W; power supply indicator: LED; operating temperature -25 ÷ 50 °C Dimensions: diameter 54 (48 x 43 mm), height: 25 mm; mounting: flush mounting Ø60; protection grade: IP20; material: plastic; weight: 44g
