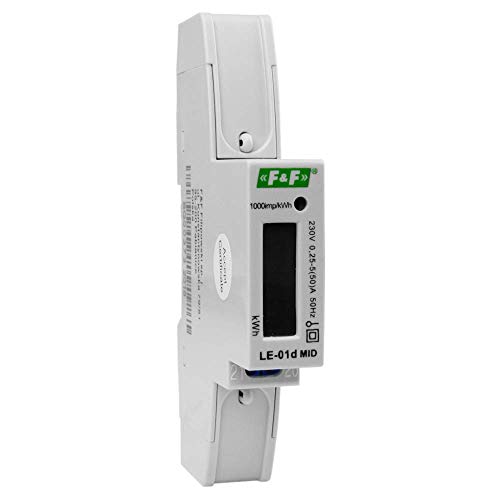

F&F 2358 Single Phase Electricity Meter 5(45) A MID LE 01d
Prices from
COMPARE ALL WEBSHOPS
(2)
Amazon
LE-01D Base current: 5 A; max. Current: 45A; Minimum measured current: 0.02A; Measurement accuracy according to IEC61036: class 1 Own meter consumption: 8 VA; 0.4 W; counter display range: 0÷99999.99 kWh; counter: constant (1 Wh/imp) 1000 imp/kWh; peak signalling: LED red Pulse output SO+ SO-: open collector; connection voltage SO+ SO-: max. 27 V DC; connection current SO+ SO-max. : 27mA; pulse time SO+ SO-: 70ms Cable screw terminals: 6.0 mm²; working temperature: -20°C ÷ 50°C; dimensions: 1 module (18 mm); mounting: rail 35 mm; protection class: IP20
Read more
48.58
Featured
|
€ 48.58 |
To Shop
|
|
€ 48.58 |
To Shop
|
Description
Amazon
LE-01D Base current: 5 A; max. Current: 45A; Minimum measured current: 0.02A; Measurement accuracy according to IEC61036: class 1 Own meter consumption: 8 VA; 0.4 W; counter display range: 0÷99999.99 kWh; counter: constant (1 Wh/imp) 1000 imp/kWh; peak signalling: LED red Pulse output SO+ SO-: open collector; connection voltage SO+ SO-: max. 27 V DC; connection current SO+ SO-max. : 27mA; pulse time SO+ SO-: 70ms Cable screw terminals: 6.0 mm²; working temperature: -20°C ÷ 50°C; dimensions: 1 module (18 mm); mounting: rail 35 mm; protection class: IP20
Description
(1)
LE-01D Base current: 5 A; max. Current: 45A; Minimum measured current: 0.02A; Measurement accuracy according to IEC61036: class 1 Own meter consumption: 8 VA; 0.4 W; counter display range: 0÷99999.99 kWh; counter: constant (1 Wh/imp) 1000 imp/kWh; peak signalling: LED red Pulse output SO+ SO-: open collector; connection voltage SO+ SO-: max. 27 V DC; connection current SO+ SO-max. : 27mA; pulse time SO+ SO-: 70ms Cable screw terminals: 6.0 mm²; working temperature: -20°C ÷ 50°C; dimensions: 1 module (18 mm); mounting: rail 35 mm; protection class: IP20
Product specifications
