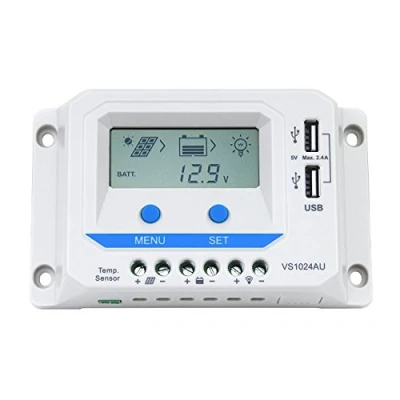

Epever® VS1024AU PWM Charge Controller 10 A, 12 V/24 V with LCD Display, USB Connection

Highlights: LCD display and dual USB interface design, intelligent 3-stage PWM charging detection: bulk, boost/equalize, float. 3 supported battery options: sealed, gel, and flooded. Multiple load control types: manual mode, light control mode, dual time mode and debug mode with real-time performance statistics recording function, battery temperature compensation function, fully automatic operating mode. Automatic shut-off if the charging current exceeds the capacity of the controller. Polarity reverse protection for battery and solar panel. Application: The multi-load control modes allow it to be widely used on ecological houses, cottages, caravans, motorhomes, boats, etc. Technical data: charging current: 10 A. Max. PV voltage: With 12 V battery 22 V PV Max; with 24 V, 50V PV Max 38.0 V. USB output: 5 V DC / 2.4 A. Rated voltage: 12/24 V DC car. Earthing: Positive. Operating temperature: -20 °C to +55 °C, Protection class: IP30. Dimensions: 142 x 850 x 41.5 mm. Weight: 220 g Certificates: CE, RoHS, FCC
