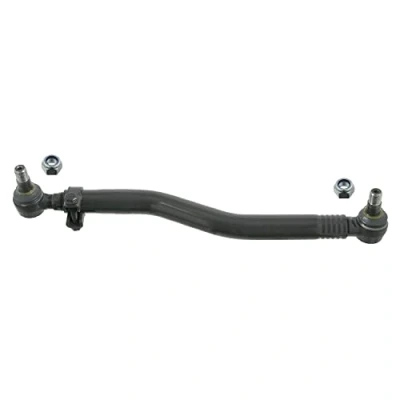

Centre Rod Assembly FEBI BILSTEIN 27485

The Centre Rod Assembly 27485 from FEBI BILSTEIN is a vehicle component designed for use with Renault Trucks and Volvo Truck applications. It is manufactured in Germany and features a length of 710 mm with an outer diameter of 50 mm. The assembly includes a female thread M32x1.5RHT, a male thread M24x1.5, a cone size of 30.2 mm, and a tube diameter of 52 mm. It is a push rod type and weighs 9.8 kg, aligning with the specification set for this part of the steering or linkage system. This description consolidates the key dimensions and compatibility to aid in verifying fit for the intended vehicle. Please use the vehicle identification at the top of the page to confirm compatibility with your vehicle and observe all restrictions.

Features

• Centre Rod Assembly 27485 by FEBI BILSTEIN
• Length 710 mm, outer diameter 50 mm
• Female thread M32x1.5RHT
• Male thread M24x1.5
• Cone size 30.2 mm; tube diameter 52 mm
• Push rod type

Technical specifications

• Suitable for Renault Trucks and Volvo Truck
• Made in Germany
• Weight 9.8 kg
• M32x1.5RHT and M24x1.5 threads
