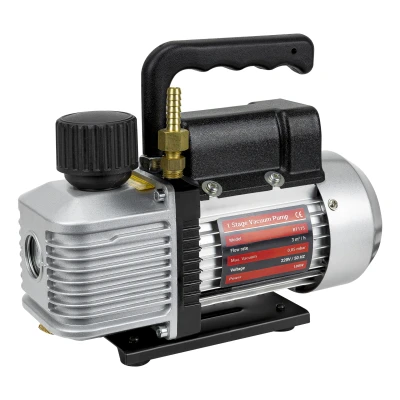

BILTEC standard vacuum pump

BILTEC vacuum pump for venting casting resins, for vacuum infusion (Resin Infusion), for drying materials such as mobile phones, making essential oils, and numerous other applications! This low-noise vacuum pump is easy to use. The pumps are equipped with a high-quality motor with copper windings and thermal protection. The vacuum pump is suitable for long-term use and becomes lukewarm during use. Tip: use a vacuum pump with gauge to monitor the pressure. Delivered quickly from stock Benefits of the BILTEC vacuum pump Easy to use. Low noise (55 dB). High vacuum. Directions for use Follow the instructions below to use the vacuum pump and watch the video. The full manual can be found under the 'Documents' tab. Before use: Fill the pump with the supplied oil until it reaches halfway up the sight glass. Check that the hose barb is properly secured and the rubber ring is present. Connect the pump to your project in an airtight manner. During use: Switch on the pump using the switch on the back. The pump will initially make a rattling sound, which will change to a humming noise once vacuum is achieved (this may take a few minutes). The pump housing may become warm; this is not a problem for the pump. Monitor the oil level and top up if necessary. Note: a light oil mist (smoke) from the exhaust is normal during vacuum build-up. If the pump continues to rattle or emit mist, it may not be achieving sufficient vacuum. In that case, check the system for leaks.   Specifications Model: BT115Brand: BILTECCapacity: 2.5 m3/hMaximum vacuum: 0.05 mbarVoltage: 230 VWattage: 180 WOil capacity: 240 mlWeight: 4 kgNoise level: 55 dBConnection: 8 mm hose socketScope of delivery: vacuum pump + vacuum oil + manual More information about the vacuum pump? Do you have questions about products in the vacuum materials category, or do you need advice on specific vacuum products and techniques? Feel free to contact our customer service — our specialists will be happy to assist you! If all products are in stock and your order is placed before 5:00 PM CET (Central European Time), it will be shipped the same day.
