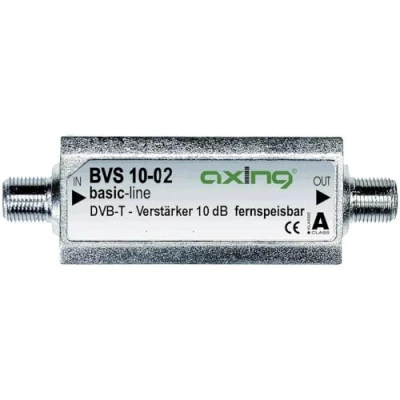

Axing BVS 10 02 DVB T Freeview DTT Mini Inline Amplifier dB (47 862 MHz) 5 V DC remote power

Mini remote power amplifier for antenna systems (FM, DAB+, DVB-T, DVB-T2 HD), for reamplification on long cable paths, only behind a selective switch allowed at reception points Required remote supply voltage 5 V DC (max. 30 mA) via input or output, e.g. from the TV or DVB-T receiver Use only as a reamplifier for active antennas or after amplifier/switch, not for direct connection to passive antennas Frequency range: 47-862 MHz, gain 10 dB (max. Output level 102 dBµV) Cast housing with connectors F socket, highly shielded according to class A
