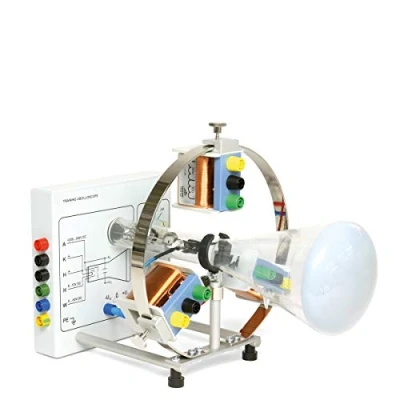

3B Scientific U8481350 Training Oscilloscope

Electron tube mounted on terminal base for investigating the design and operation of modern cathode ray tubes Electron beam can be deflected by an electric field produced by the deflection plates integrated into the tube and by a magnetic field from three external coils mounted on a ring A gas filling and fluorescent screen makes it possible to observe the beam in the tube A continuously adjustable saw-tooth generator can be used to analyze and visualize time dependent processes Device comes with a socket and printed wiring scheme
